Z34/22 Genie Boom - Diesel
Code: 1080
Ideal for outdoor construction and industrial applications. The Genie® Z®-34/22
boom lift offers quiet, emission-free operation in the most sensitive work
environments, as a 48V DC machine.
- 12.52 m (40 ft 6 in) working height
- 6.78 m (22 ft 3 in) horizontal reach
- 4.62 m (15 ft 2 in) up and over clearance
- Up to 227 kg (500 lbs) lift capacity
Z-34/22N Specifications PDF
Risk & Hazard Management PDF
Operator Manual PDF
|
|
460SJ JLG Boom - Diesel
Code: 1063
Diesel engine powered straight boom lift with 360 degrees continuous swing.
Standard with AC generator providing 240V to outlets in platform. Solid, puncture proof foam
filled tyres for less downtime on a 4 wheel hyrdrostatic drive system
- Platform Height: 14.02 m / 46 ft
- Horizontal Outreach: 12.34 m / 40 ft
- Platform Capacity - Unrestricted: 270 kg / 595 lb
- Machine Weight: 7930 kg / 17483 lb
Best-in-class gradeability and reach.
Fastest lift and drive speeds for unmatched productivity.
Specifications PDF
Operation & Safety Manual PDF
Risk & Hazard Management PDF
|
 |
510AJ JLG Diesel Knuckle Boom
Code: 1330
The new JLG Model 510AJ provides even greater choice with its 15.8 m platform
height and superb working envelope that combines 9.5 m outreach with 7.6 m up
and over height - putting this machine in a class of its own.
- 15.81 m (51 ft 10 in.) platform height
- 9.48 m (31 ft. 1.5 in.) horizontal reach
- 7.63 m (25 ft. 0.5 in.) up and over height
- 230 kg (500 lbs.) lift capacity
510AJ Specifications PDF
Operator Manual PDF
Risk Assessment PDF
|
 |
Z51/30 Genie Boom
Code: 1081
The Genie® Z®-51/30 articulating boom lift provides lifting versatility with a
combination of up, out and over positioning capabilities with outreach that’s
second to none. Ideal for outdoor construction and industrial applications.
- 17.59 m (57 ft 8 in) working height
- 9.37 m (30 ft 9 in) horizontal reach
- 7.39 m (24 ft 3 in) up and over clearance
- Up to 227 kg (500 lbs) lift capacity
Z-51/30J RT Specifications PDF
Risk & Hazard Management PDF
Operator Manual PDF
|
|
520AJ JLG Diesel Knuckle Boom
Code: 1364
Start work quicker with industry leading elevation time. (* 50% faster compared with
previous model. Actual timings may vary.) Carry more tools and materials and be able
to work longer with 250 kg basket weight capacity
- 1.24 m Articulating Jib
- 180 Degree Powered Platform Rotator
- Interactive Display at Ground Controls
- 0.76 m x 1.83 m Platform Side Entry
520AJ Specifications PDF
Operation & Safety Manual PDF
Risk Assessment PDF
|
 |

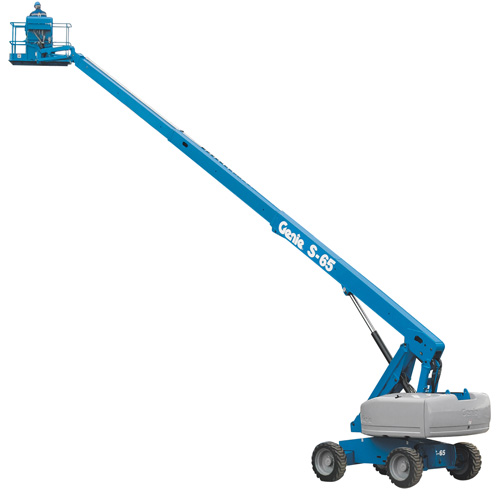

S65 Genie Boom - Diesel
Code: 1077 & 1101
- Platform Height: 65 ft (19.80 m)
- Horizontal Outreach: 56 ft 2 in (17.10 m)
- Lift Capacity: 500 lbs (227 kg)
- Working Height: 71 ft (21.80 m)
360˚continuous rotation turntable for quick positioning.
Self-leveling platform with hydraulic platform rotation.
Specifications PDF
Operators Manual PDF
Risk Assessment PDF
|
|
660SJ JLG 4WD Boom - Diesel
Code: 1149, 1163 & 1189
- Platform Height: 20.31 m / 67 ft
- Horizontal Outreach: 17.30 m / 57 ft
- Platform Capacity - Unrestricted: 230 kg / 507 lb
- Machine Weight: 13119 kg / 28922 lb
Best selling 60 ft (20.3m) boom lifts.
4 wheel drive.
Easy-to-use platform controls.
Specifications PDF
Operator Manual PDF
Risk Assessment PDF
|
 |

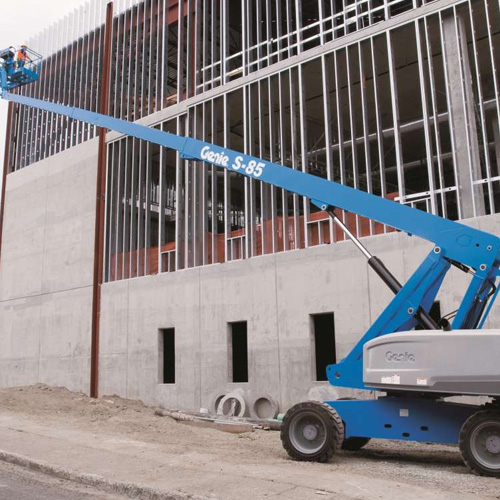

S85 Genie Boom - Diesel
Code: 1193
- Platform Height: 85 ft (25.90 m)
- Horizontal Outreach: 76 ft 6 in (23.30 m)
- Lift Capacity: 500 lbs (227 kg)
- Working Height: 91 ft (27.70 m)
360˚continuous rotation turntable for quick positioning.
Self-leveling platform with hydraulic platform rotation.
Specifications PDF
Operator Manual PDF
Risk Assessment PDF
|
 |
860SJ JLG Diesel 4WD Straight Boom
Code: 1286
Start work quicker with industry leading elevation time. Carry more tools and materials and be able
to work longer with 250 kg basket weight capacity
- 1.24 m Articulating Jib
- 180 Degree Powered Platform Rotator
- Interactive Display at Ground Controls
- 0.76 m x 1.83 m Platform Side Entry
860SJ JLG Specifications PDF
860SJ JLG Risk Assessment PDF
860SJ JLG Operation & Safety Manual PDF
|
 |
